Narmada Bridge

Jabalpur, Madhya Pradesh

Project Overview

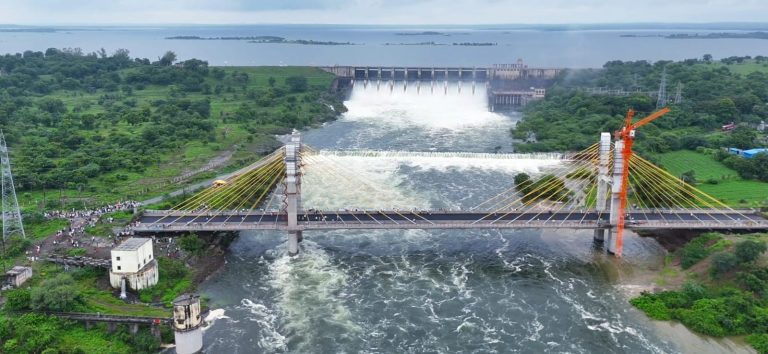

Located in central Indian state of Madhya Pradesh, near the city of Jabalpur over river Narmada, this bridge forms a crucial link in the under-construction Jabalpur ring road. Crossing the river Narmada which is 900 meters wide, this structure required long spans of 150m. Additionally, banks of Narmada are developed with tourism in mind, thus aesthetics of this bridge was very important to the project owners.

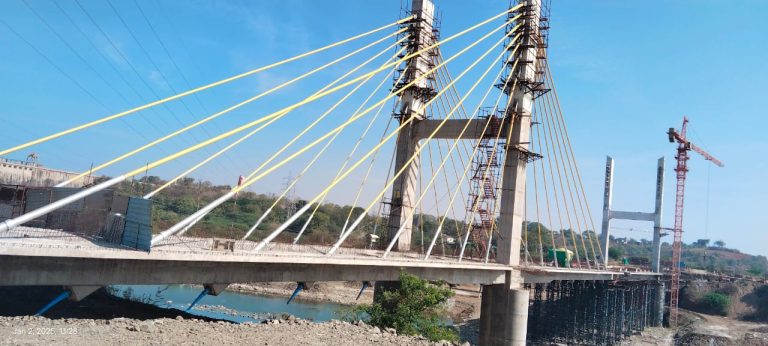

Solution proposed and under construction is of a two plane system extradosed cable stayed bridge with fan type stay cables. Single cell box girder with struts are provided to carry 3 lanes of vehicular traffic as well as heavy pedestrian traffic on 20.8m wide deck. Twin leaf type piers are provided to improve the seismic performance of the bridge as well as minimize effects of thermal and long term effects. Pile foundations unique to each location based of significant variations in bed rock profile are provided.

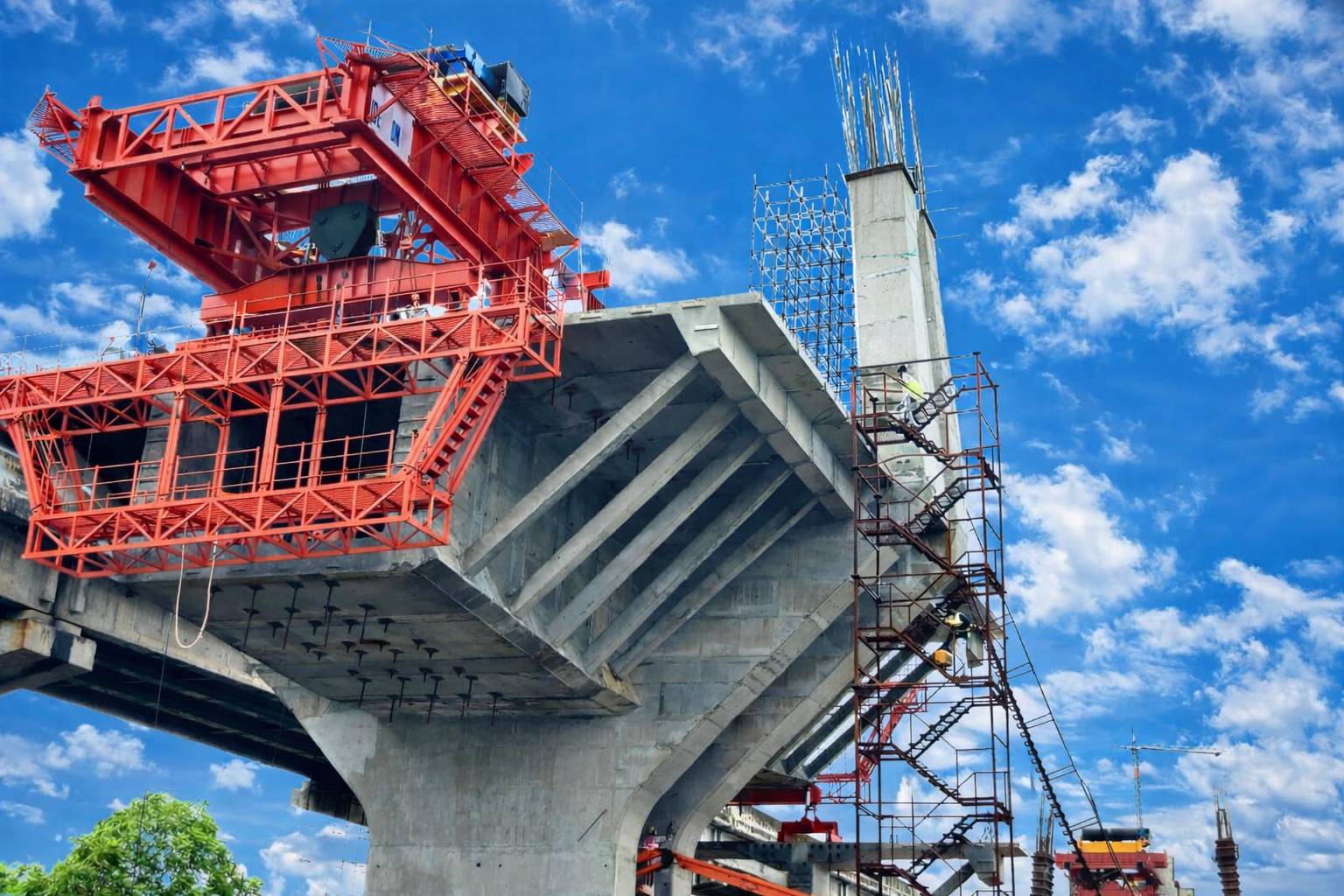

Pre-cast segmental construction is used for construction of extradosed spans, for which detailed construction stage analysis with temporary prestress during construction as well as accurate pre-cambering analysis is carried out to obtain casting geometry of segments.

Owner

National Highway Authority of India (NHAI)

Contractor

Jandu Construction India Pvt. Ltd.

Cost

INR 150 Crores

Location

Jabalpur, Madhya Pradesh

Google Map

Technical Details

Total Length

1020m

Typical Span

150m

Special span

150m

Superstructure

Extradosed bridge with strutted box

Precast segmental construction

PSC I girders for approach viaduct

Deck width – 20.8m

Substructure

Aesthetically appealing wine glass shaped combination of piers and pylons resting on 1500mm dia pile foundations socketed in soft rock

Highlight

One of the longest continuous extradosed bridge in India with multiple units of 150m
