Aizawl Arch Bridge

Aizawl, Mizoram

Project Overview

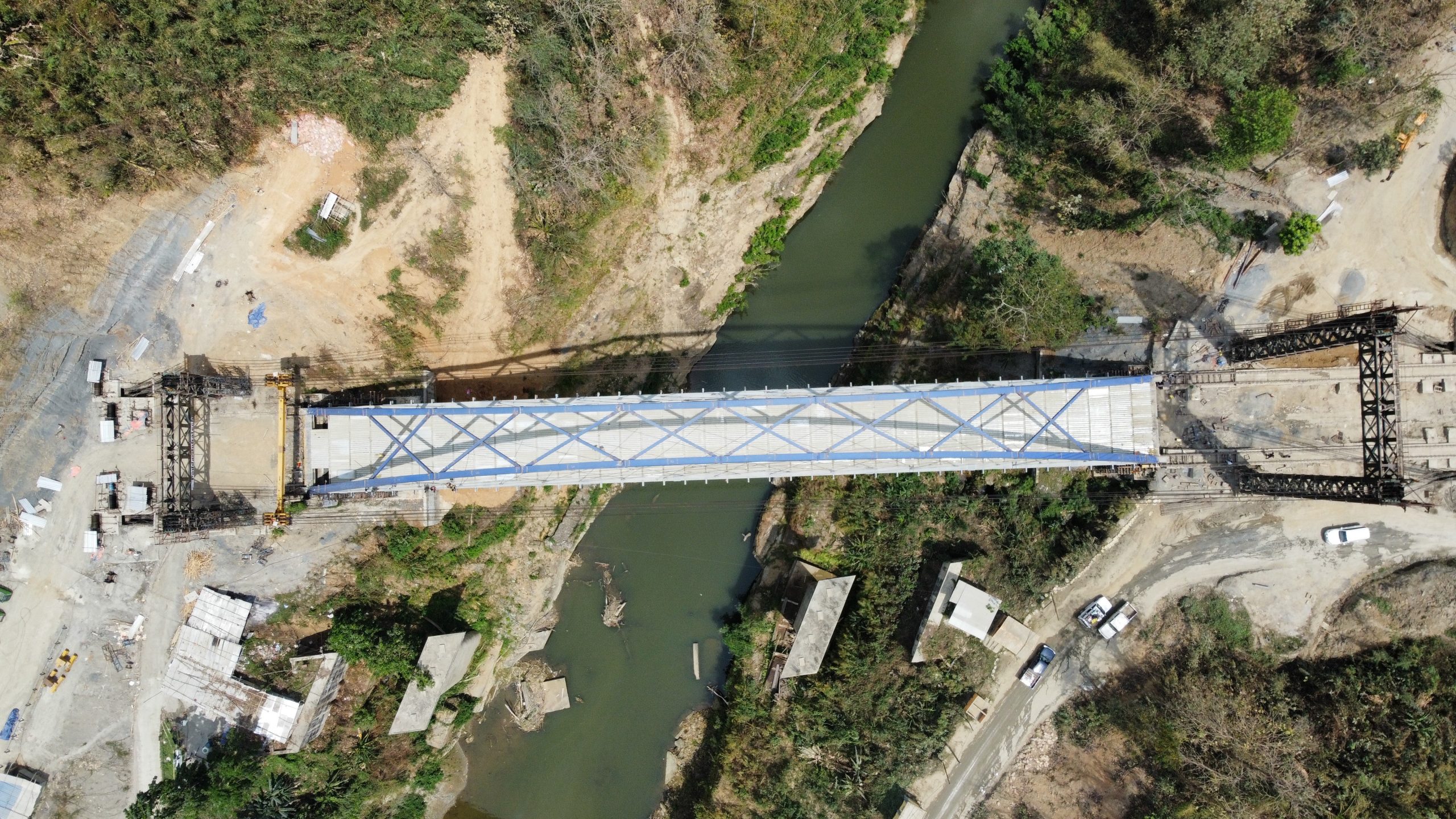

The 103 m single span Aizawl arch bridge over river Tlawng connects Aizawl city to Lengpui Airport and is visioned to be a landmark structure that will leave a lasting impression on all those entering the state of Mizoram. The bridge was proposed as a replacement to old single lane Baileys bridge.

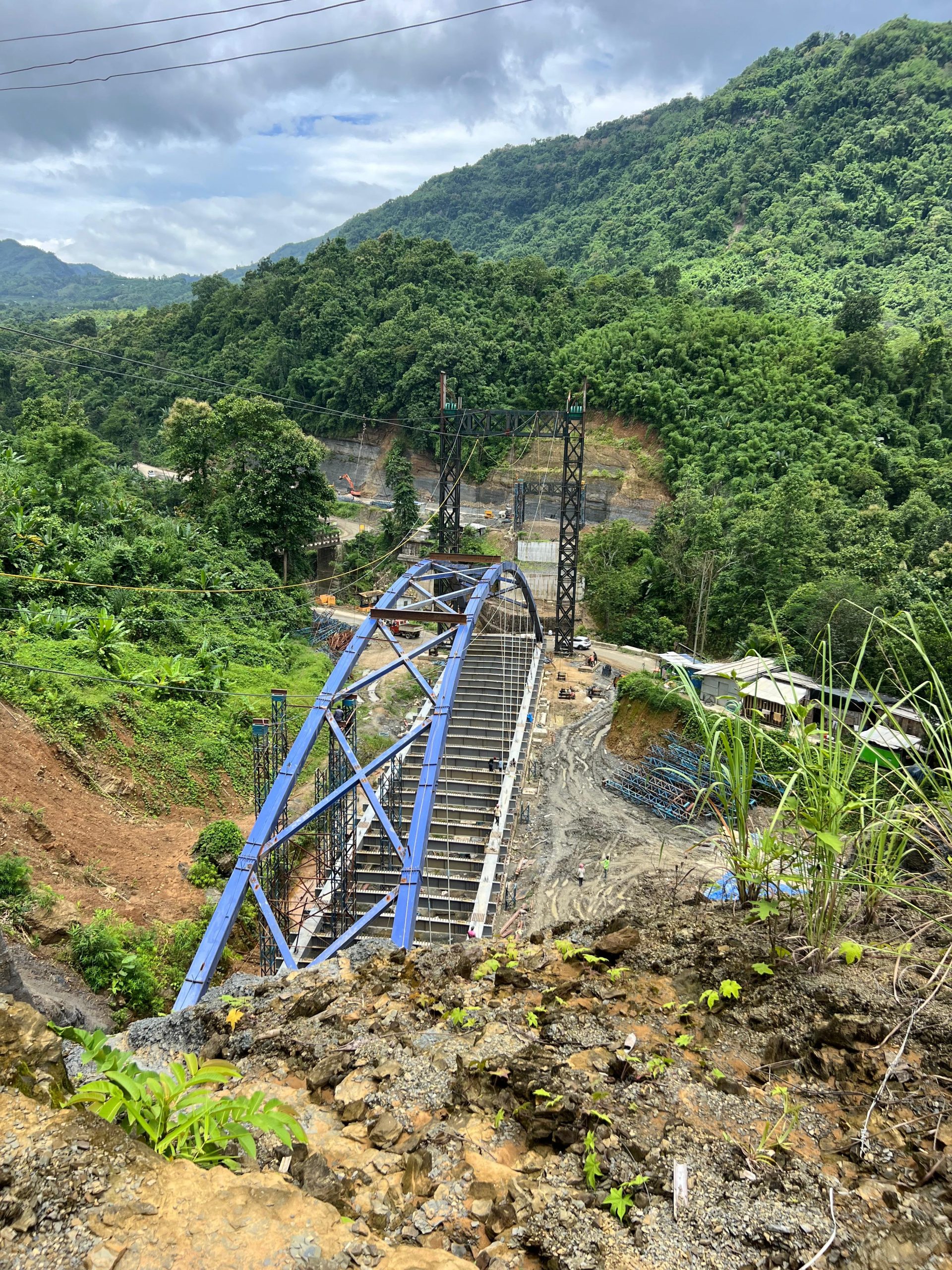

The basket handle steel network arch bridge has been conceptualized by Force SE keeping the above objective in mind. The slender shape and aesthetics of the bridge seamlessly integrates with the adjacent environment and topography and creates a sense of awe in the onlooker. The bridge is under construction and also happens to be first basket handle network arch bridge in the country. The bridge features 14.25 m wide deck for two lane of traffic and footpath on either side.

Owner

PWD Mizoram

Contractor

Poddar Construction Company

Cost

INR 40 Crores

Location

Aizawl, Mizoram

Google Map

Technical Details

Total Length

103m

Typical Span

Special span

103m

Superstructure

E350 grade structural steel network arch bridge

Arches tilted inward to improve aesthetics

Steel cross beams between ties support the concrete deck slab

Substructure

Bed block abutments resting on soft sandstone

Elastomeric bearings as seismic isolation to reduce forces in high seismicity

Highlight

One of the first basket handle network arch bridges in India
